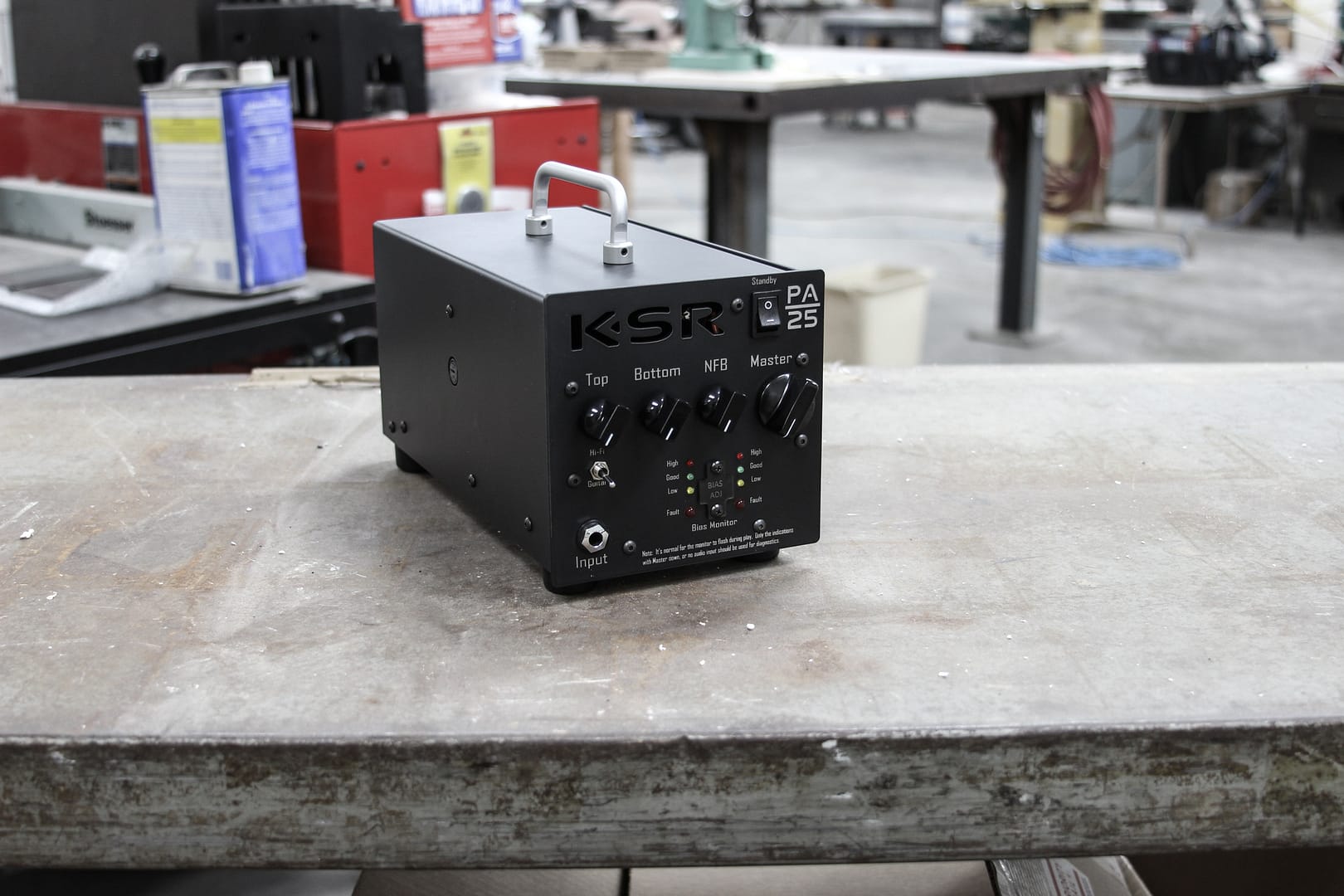

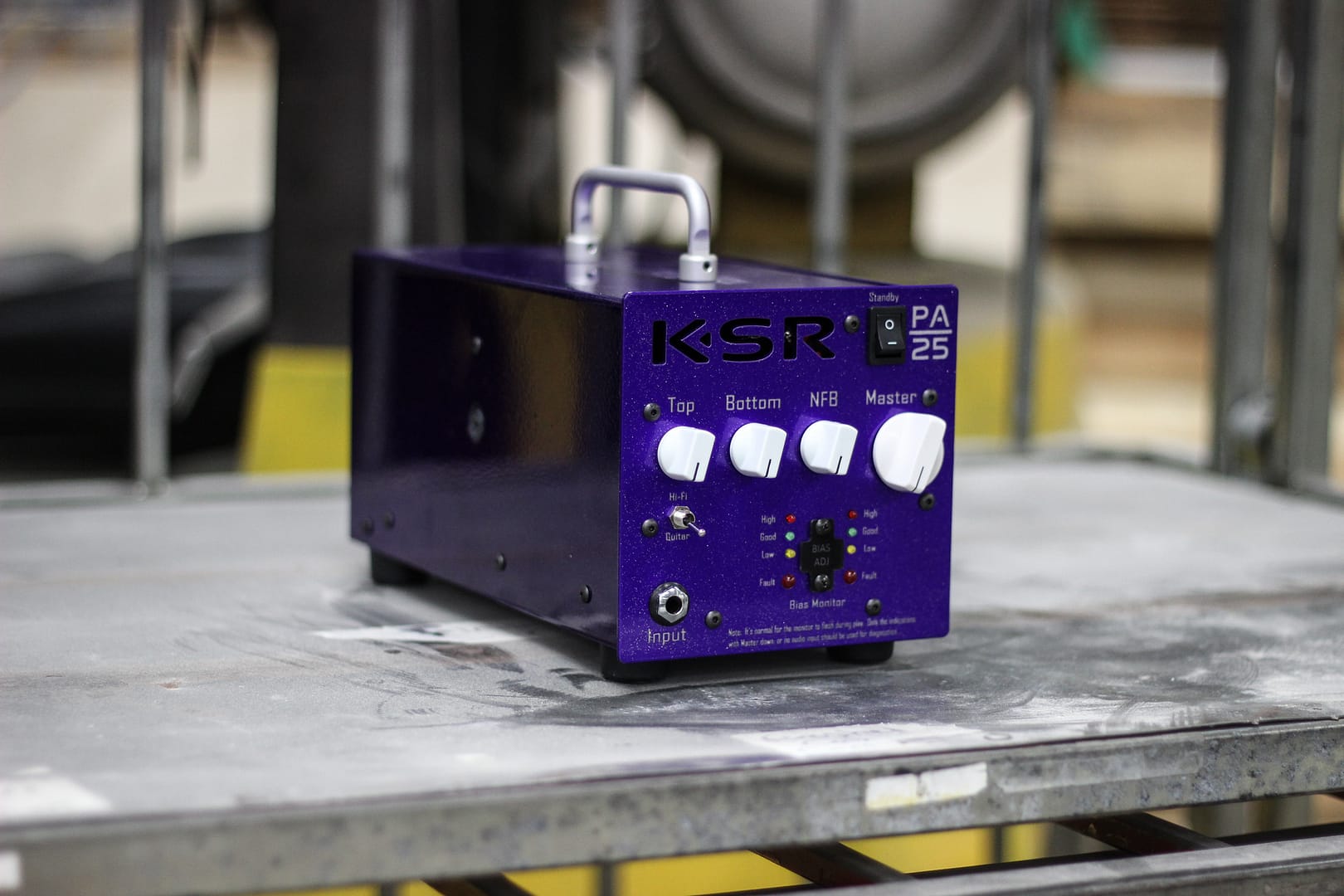

PA25 – Compact Power Amp

$799.00

Available on backorder

Pay a 25% deposit per item
SKU: 180-2002 Category:

Description

About the Pre-Order

Due to unforeseen circumstances — parts shortages, labor shortages, and business closures, anticipated shipping has shifted to late June / early July. We’re sorry for the inconvenience, we are working to get these out as fast as we can!

Orders shipped in order received. 25% deposit secures order. Balance request will occur when unit is ready to ship. If not received in 2 days, slot moves to next order in queue. Once paid your unit will ship next.

Overview

The PA25 is nearly identical to it’s bigger brother, the PA50, however it’s 0.5″ narrower and 2.1 lbs lighter in weight! It accepts all the same tubes, it simply delivers half the power.

Finally, the perfect power amp to compliment your Ceres, or any other preamp! Our goal for this product was to put the excellent power section found in our amp heads into the smallest package possible. Weighing in at only 10.7 lbs (4.8 KG), it packs a huge punch in a compact, portable unit.

With the myriad of tone shaping controls the PA25 will be right at home with any preamp, distortion pedal, or modeling unit. The HiFi / Guitar switch is the secret weapon for running your modeler, or if your preamp is particularly dark. The extensive set of NFB (negative feedback) controls allow for near limitless tone sculpting options, garnering both the best modern and vintage tones.

The PA25 includes our first-ever built-in bias monitoring circuit, as well as individual adjustments for each power tube. This allows for the use of slightly mis-matched tubes, as well as purposeful mis-matching to generate different harmonic content.

Quick and Dirty Videos

These are technically of the PA50, but the PA25 sounds the same, just -3dB max volume!

Specifications

Controls: Top (presence), Bottom (resonance/depth), NFB (negative feedback), Master Volume

Switches: HiFi / Guitar source select, Hi / Low NFB range, Power, Standby

Bias: Individual tube bias monitor and adjustment, all via the front panel.
LEDs from top-bottom: Good, High, Low, Fault. It’s normal for the LEDs to blink and flash as you play, especially at loud volumes the effect is more pronounced.

Internal LED lighting color selectable via internal jumpers: Red, Green, Blue, Yellow, Purple, Cyan, White, or Off

Voltage Input: 115/230V, 50/60 Hz
Power Output: 25W RMS
Power Tubes: 6L6GC, EL34, or KT77
Preamp Tube: 12AX7 phase inverter

Dimensions: 5.25″ wide, 5.125″ tall, 10.625″ deep (not including feet or knobs/switches)
Weight: 10.7 lbs (4.8 KG)

Controls: Top (presence), Bottom (resonance/depth), NFB (negative feedback), Master Volume

Switches: HiFi / Guitar source select, Hi / Low NFB range, Power, Standby

Bias: Individual tube bias monitor and adjustment, all via the front panel.
LEDs from top-bottom: Good, High, Low, Fault. It’s normal for the LEDs to blink and flash as you play, especially at loud volumes the effect is more pronounced.

Internal LED lighting color selectable via internal jumpers: Red, Green, Blue, Yellow, Purple, Cyan, White, or Off

Voltage Input: 115/230V, 50/60 Hz
Power Output: 25W RMS
Power Tubes: 6L6GC, EL34, or KT77
Preamp Tube: 12AX7 phase inverter

Dimensions: 5.25″ wide, 5.125″ tall, 10.625″ deep (not including feet or knobs/switches)
Weight: 10.7 lbs (4.8 KG)

Additional information

Weight 12 lbs
Dimensions 16 × 10 × 10 in
