Overview

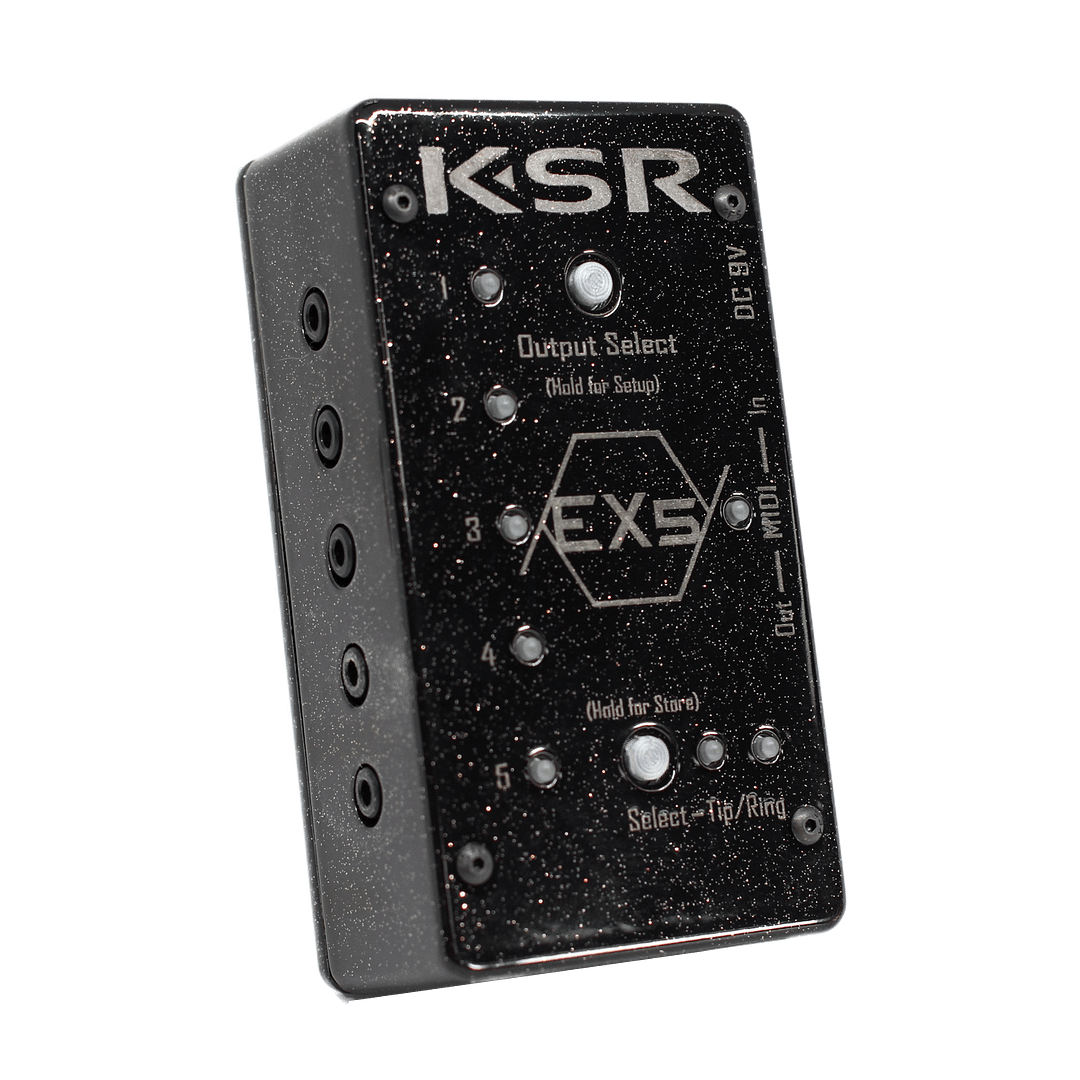

Meet the EX5, the first in our new Utility Series line of products!
You may have noticed that little 1/8″ jack on our pedals labels “Ext. Control Interface”. This was added to allow for control of our pedals via an external means, such as a switcher, or what have you. Our intention all along was to eventually offer a product to utilize this port, and that’s where the EX5 comes in. The cool thing — it also controls our non-MIDI amps! With quick and easy plug ‘n play, you can operate the Ares, Juno, and Orthos, plus all our pedals. The EX5 is aptly named as it has 5 external control outputs, each an isolated TRS connection with two independent contacts.
Production
We are beginning production of the EX5 and orders will be shipped on a first-come, first-served basis.
Note: Custom colors will be available by request. To start we are offering black sparkle as the standard finish.
Features:
- 5x isolated TRS outputs, 2 contacts each
- MIDI In / Out
- 9V DC input >= 200 mA
- Phantom power possible via MIDI connection
- Latching, positive pulse, or negative pulse configuration for each output
- Simple 2 button interface for programming
- MIDI PC for storage of patches
- MIDI CC for direct control of each output
- Compact form factor — same size as the Eros pedal
Specifications

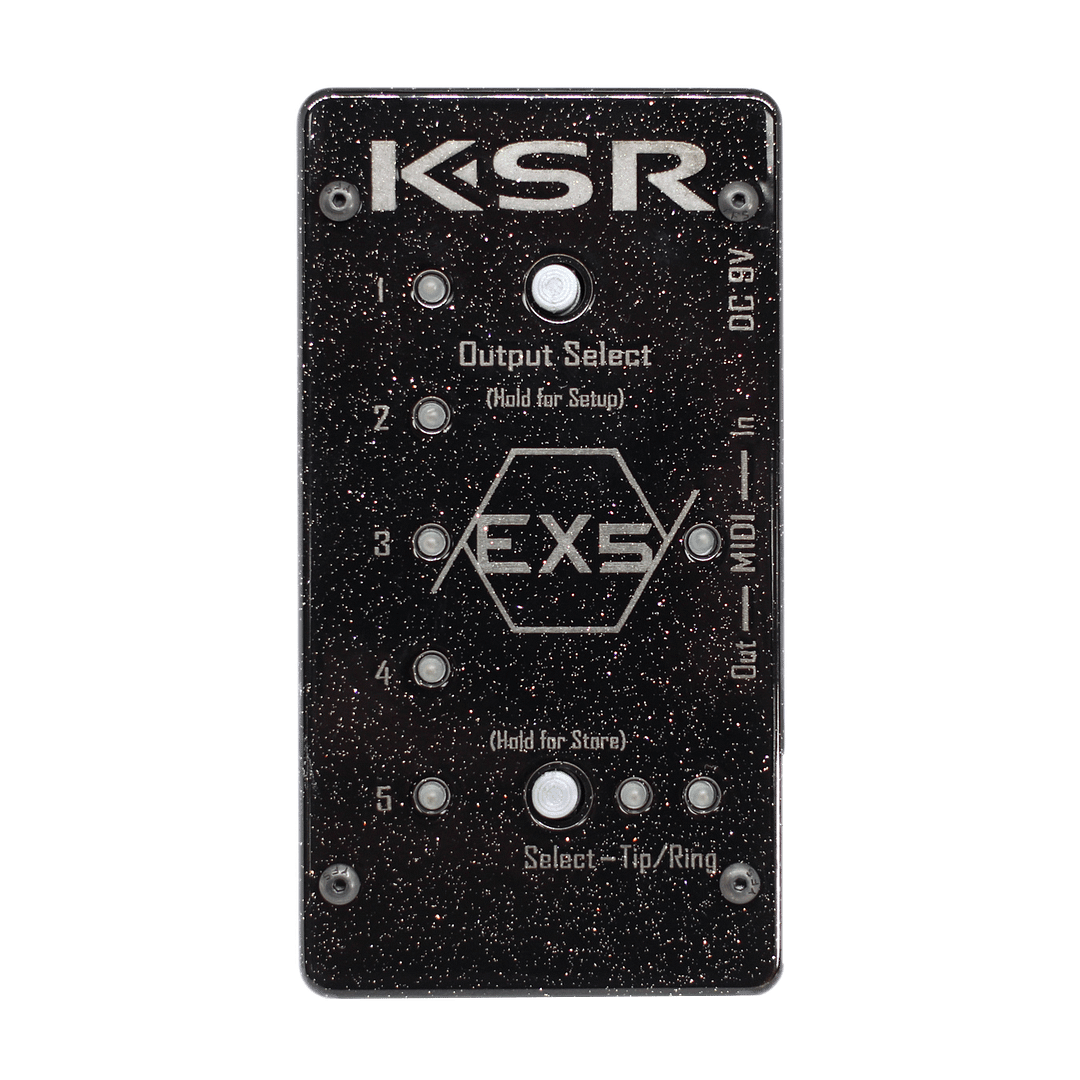

Controls: Select Output, Select T/R
Power: DC 9V, >= 200 mA via jack or MIDI phantom power
Size: 4.37″ x 2.37″ x 1.22″
Quick Demo
MIDI CC
L1 80
L2 81
L3 82
L4 83
L5 84
L6 85
L7 86
L8 87
L9 88
L10 89
L1_MOM 104
L2_MOM 105
L3_MOM 106
L4_MOM 107
L5_MOM 108
L6_MOM 109
L7_MOM 110
L8_MOM 111
L9_MOM 112
L10_MOM 113
The way the EX5 works is the TR for each output are counted incrementally — so Out 1/T is Loop 1. Out 1/R is Loop 2. Out 2/R is Loop 4. And, so on.
The MOM CCs are for momentary clicks.
Shawn (verified owner) –

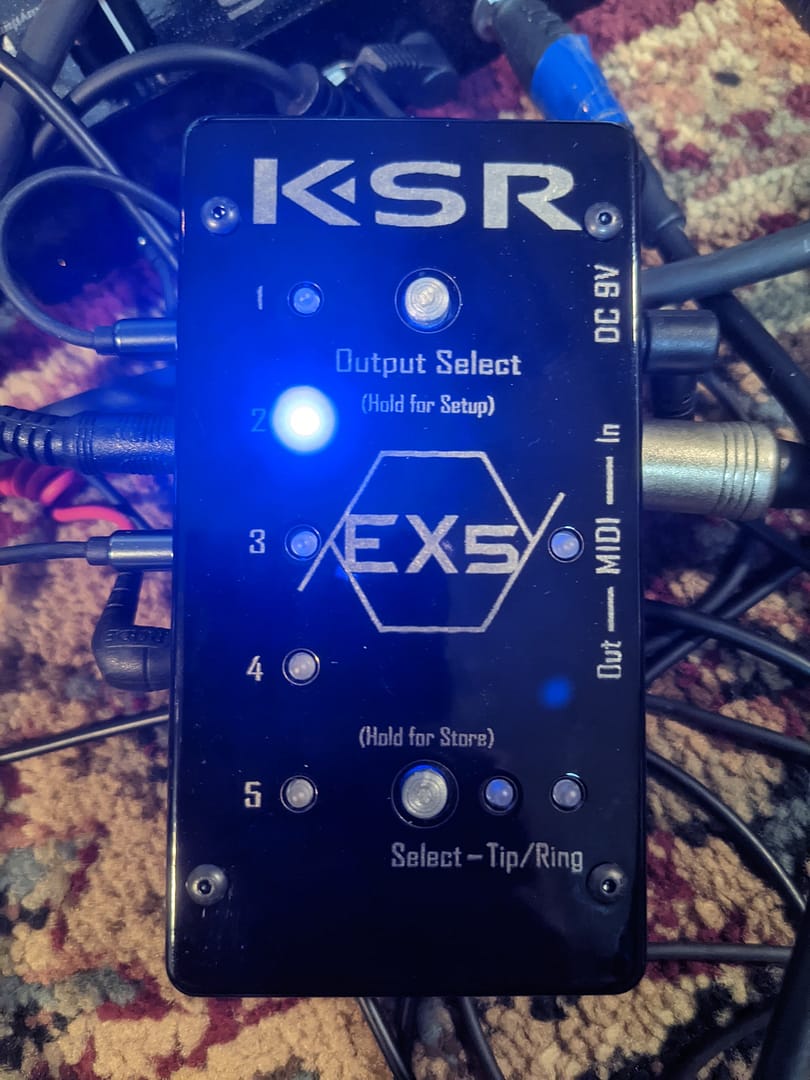

This pedal is very creative! KSR has a great line of pedals and amps that are not midi capable. But when you add this device in it gives you full control to make that happen. I got this to build a small midi rig with my Vesta, and Hera.
