Description

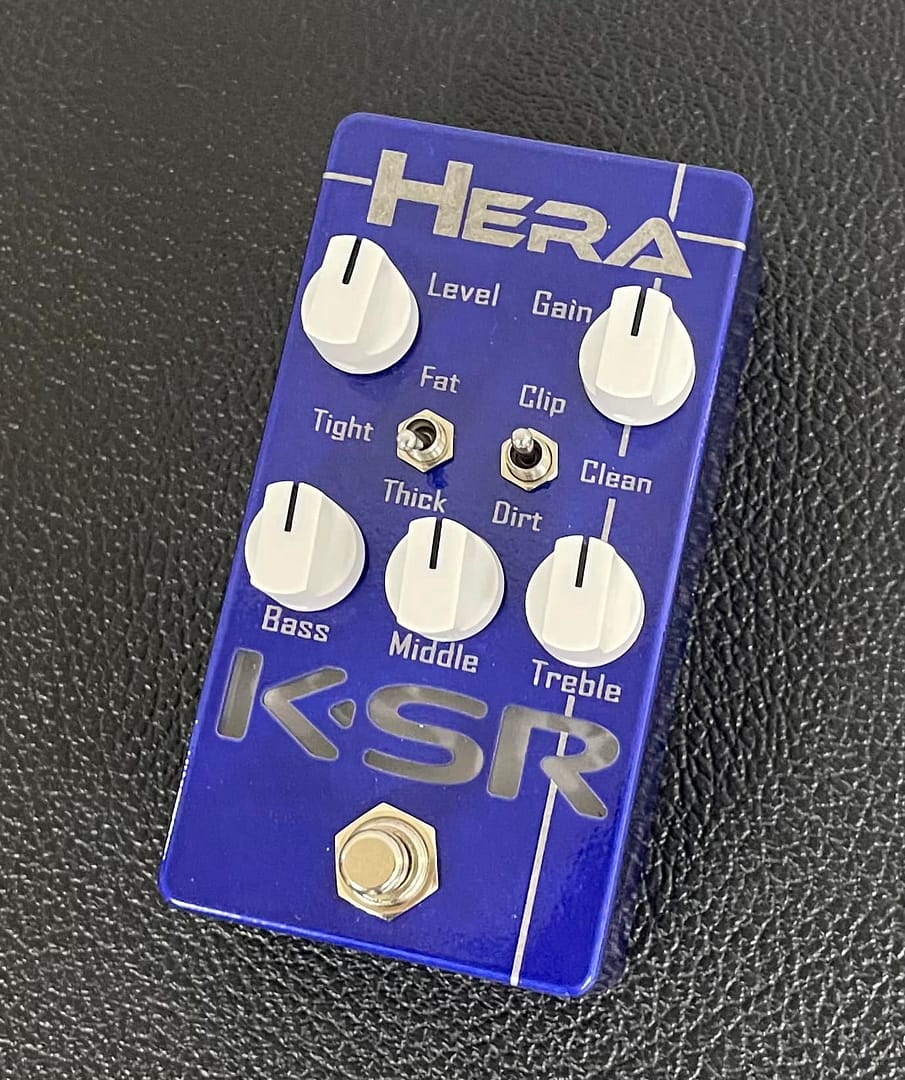

KSR Hera Transparent Boost + EQ Pedal</h2

Click “Finish” dropdown to see in-stock Hera

Overview

It’s still not your typical boost. Where the Eros was designed for playing drop-tuned extended range guitar into the muddiest of amps, the Hera is completely different. It’s designed to push any amp with more typical standard tunings. It’s much more transparent and the low-end is full, yet clear. It will boost clean without overdrive, add a little grit, or add distortion. It has a 3-band active EQ for precision sculpting.

Use it in front to add volume or grit to a clean or crunch channel. Or, put it in the loop for some unique boosting and EQ response changes.

Similarly, use it before or after the Ceres / Vesta for even more control over its tones, and in order to get the most out of it based on your power amp situation.

Setup Notes

This is not “just another TS style boost,” therefore it should not be setup in that way. e.g. don’t crank the Level and cut the Gain. Start with both at noon and go from there. The Feel (tight/fat/thick) and Mode (clean/clip/dirt) switches will lose effectiveness the lower the Gain control is set.

Further, the higher Level is cranked the more internal distortion can be generated in the last gain stage, and therefore it will add distortion within the Hera coupled with a higher Gain setting. With a lower Gain setting the last stage will remain unclipped, but a huge signal will slam the front end of any amp. This can be too large a signal to achieve your desired sound. e.g. too much saturation due to lack of headroom in the amp’s first stage.

In short, all the controls will interact, and there are countless ways you can run this pedal. Please experiment!

Specifications

Controls: Gain, Bass, Mid, Treble, Level
Switches: Mode (clean/dirt/clip), Feel (tight/fat/thick)
Power: DC 9V with internal booster, >= 100 mA
Size: 4.37″ x 2.37″ x 1.22″

Power Supply

NOTE — Power Supply Not Included! Here’s a compatible (9V, center negative, 500 mA) power supply for the Eros / Ceres:
