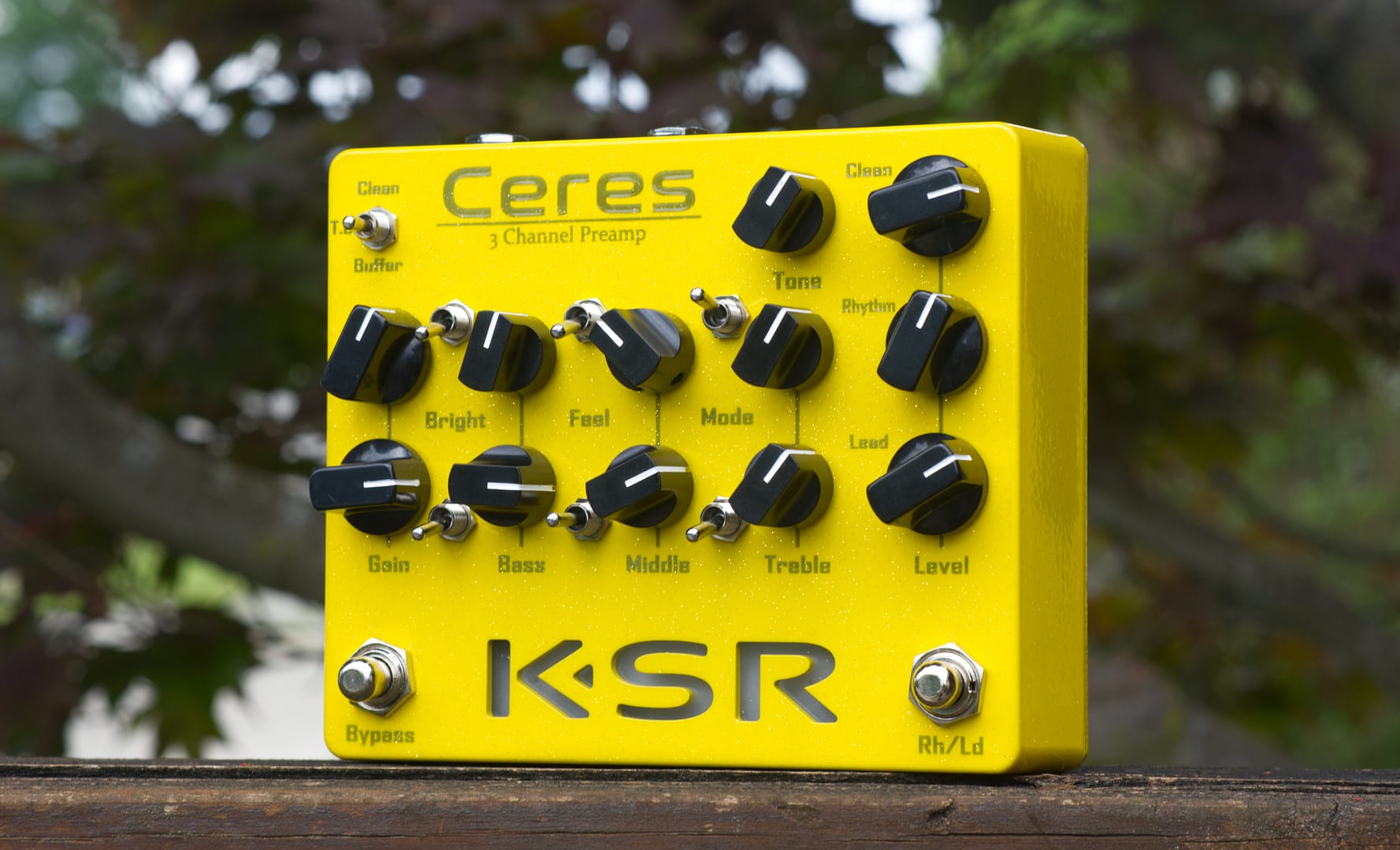

Ceres – Yellow Van Sam

$399.99

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 180-97155-1-1-2 Categories: , Tags: , ,

Description

Pedal All Summer!

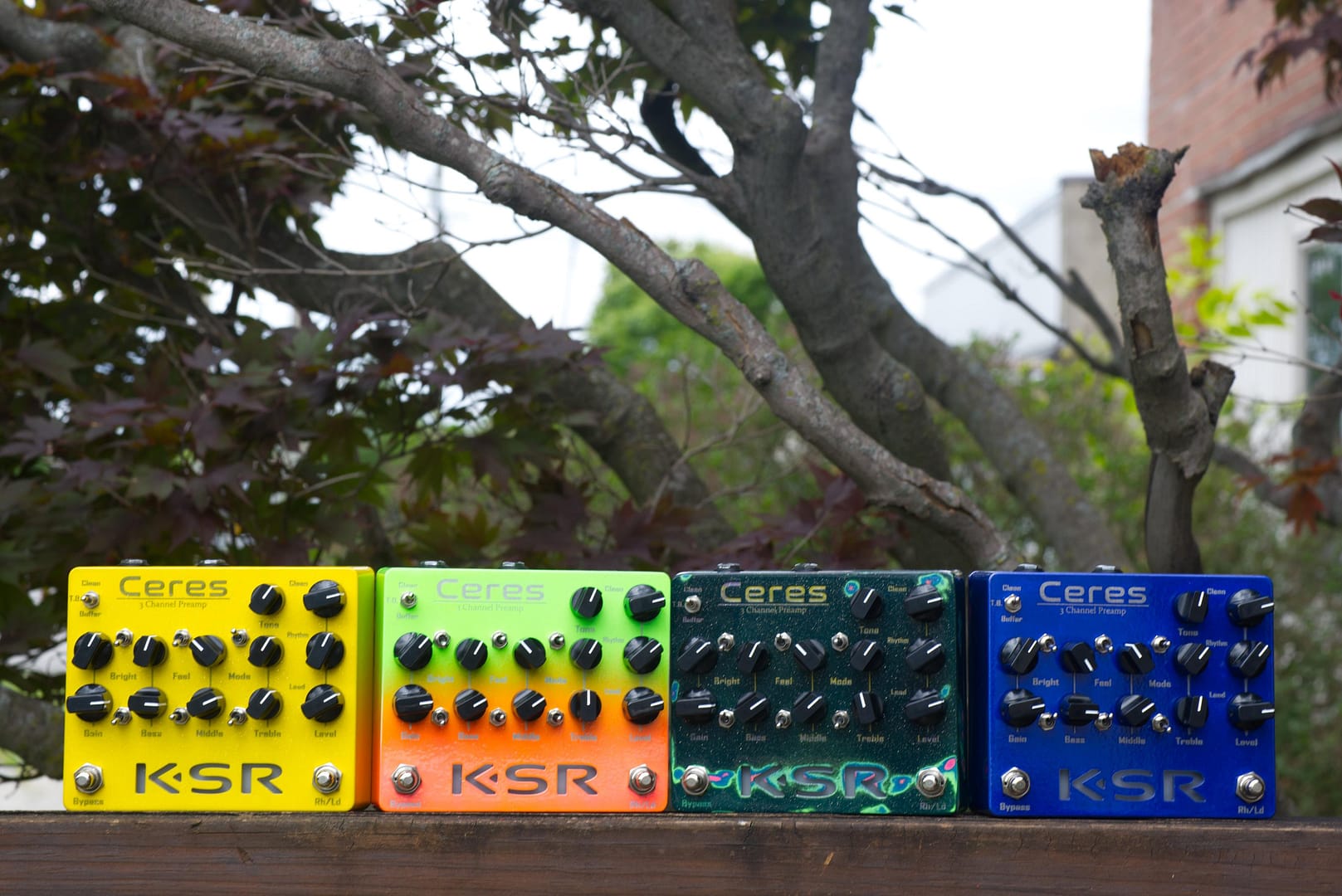

We’re offering some juicy handpicked custom colors from our Private Stock collection to keep your pedalboard feelin’ that summer love all year long.  These pedals are all one-off colors or complete customs that will never be offered again.  In stock and ready to ship… at standard finish pricing!

User Manual

Ceresâ„¢ User Manual PDF

Power Supply

NOTE — Power Supply Not Included! Here’s a compatible (9V, center negative, 500 mA) power supply for all our pedals:

KSR Pedal Power Supply

Overview

The Ceresâ„¢ preamp, contains our signature tones from three of our amplifiers – the Ares, the Artemis/Gemini, and the Colossus.

Ultimately, the Ceresâ„¢ preamp distills our KSR sound into a small package. At only 5.7″ x 4.7″, it features many of the same functions present on all our amps — such as the Mode, Feel, and Bright switches. Moreover, this pedal provides the ultimate mobile tone versatility from weekend gigs to fly rigs. It also delivers the KSR signature sound to any board or interface for live and studio applications.

Hookup

Top mounted jacks allow for easy integration into your existing pedal board. Unique to our pedal operation, we include 3 bypass modes — True Bypass, Buffered Bypass, and Clean Bypass. In True and Buffered bypass the pedal operates as expected, no tonal coloration. The Clean Bypass mode enables the top row of Tone and Volume knobs accessing the Clean channel. These various Bypass Modes allow for integration into any style of rig — from driving a power amp directly (Clean mode), hitting a clean amp down the chain on your pedal board (True Bypass mode), or at the start of your pedal board, driving your other pedals into a clean amp (Buffered mode).

The preferred operating method is to run the Ceresâ„¢ into the input of the effects loop return of any amplifier head or directly into a power amp, but it will also work just as well when run into a clean channel with some EQ tweaking.

Time based effects (delay, chorus, flange, etc) should be placed after the Ceresâ„¢, before the power amp. A simple loop switcher can even be used to create effects loop(s) between the Ceresâ„¢ and power amp.

Controls

The Ceresâ„¢ includes two integrated footswitch buttons to activate the 3 channels. The left button toggles between Bypass and Rhythm/Lead. The right button toggles between Rhythm and Lead. With the Bypass Mode switch set to Clean, bypassing the pedal actually activates the Clean channel.

The gain controls in all channels feature the same range from clean to saturated signals and operate as close as possible to the full size KSR amps. They function without any unwanted top-end artifacts typically associated with solid-state circuits. The Ceresâ„¢ EQ options then make for a highly versatile Pre-Amp pedal giving you as much control.

Here is a quick overview of the switch functionality of the pedal, mirroring our signature amplifiers:

Bright:
Up = On, Down = Off. The switch works just like a typical Gain pot bright capacitor in that the lower the Gain setting, the more the effect.

Feel:
Up = Fat, Center = Tight, Down = Thick

Mode:
Up = Ares Crunch, Center = Artemis/Gemini Red Mode, Down = Colossus Lead

Connections

Looking at the front of the pedal, top-right is the external control input, then Guitar Input, 9V DC input, and finally Output to amp.

The 9V DC input requires at most 200 mA to function. This is accessible via the high-current output of a Voodoo Labs Pedal Power, or similar. Please do not exceed 9V as the pedal will shutdown to protect the internal electronics. We generate optimal voltages internally, so providing more than 9V is simply not necessary, or possible.

The Control port is a 3.5mm (1/8″ headphone) TRS jack that allows control of the pedal channels and future expansion. Simply use an 1/8″ to 1/4″ TRS cable / adapter to connect this to momentary contact closure relays, and you can completely control the pedal, just as you can with the two foot switches.

Manufacturing

We are proudly manufacturing this pedal completely in our Cincinnati facility. CNC machining, powder coating, laser etching, circuit board assembly are all performed under our roof — no outsourcing.

Demos



Additional information

Weight 2 lbs
Dimensions 7 × 7 × 3 in

User Manual

Ceres User Manual PDF
